I conducted an experiment in which I tested receptacles with different wiring problems. I tested each wiring configuration with both a three-light tester and a SureTest circuit analyzer model 61-164 from Ideal Industries.
In this post, I will show the results of each of these tests so that you can see the advantages and the limitations of these two devices.
But first, a brief introduction.
Three-light testers are devices used by many home inspectors, electricians, and handymen to test electrical receptacles.
There are several reasons that they are so popular:
- They are simple to use.
- They are cheap, costing as little as about $10.
The other tester is the SureTest circuit analyzer model 61-164 from Ideal Industries. It can do a lot of things that the three-light tester cannot do. As the name says, it is a circuit analyzer.
If you are simply wanting to know if a receptacle is properly wired, the SureTest circuit analyzer will tell you. It can also measure voltage drops, tell you how fast a GFCI receptacle trips, measure resistance on the hot, neutral, and ground wires, etc.
While all of this information may be useful for some people, it is a lot more information than most home inspectors and handymen need to know.
An advantage of the Suretest over a three-light tester is that it can identify some deficiencies that a three-light tester cannot identify.
The biggest disadvantage to a Suretest is its cost. It costs about $300 compared to $10 for a three-light tester.
Another disadvantage is that the SureTest takes 10 – 15 seconds to analyze a receptacle while a three-light tester does its thing instantaneously.
The Results –
I wired up my test receptacle with various wiring configurations. Then I plugged each tester into the receptacle to see what indication they would give.

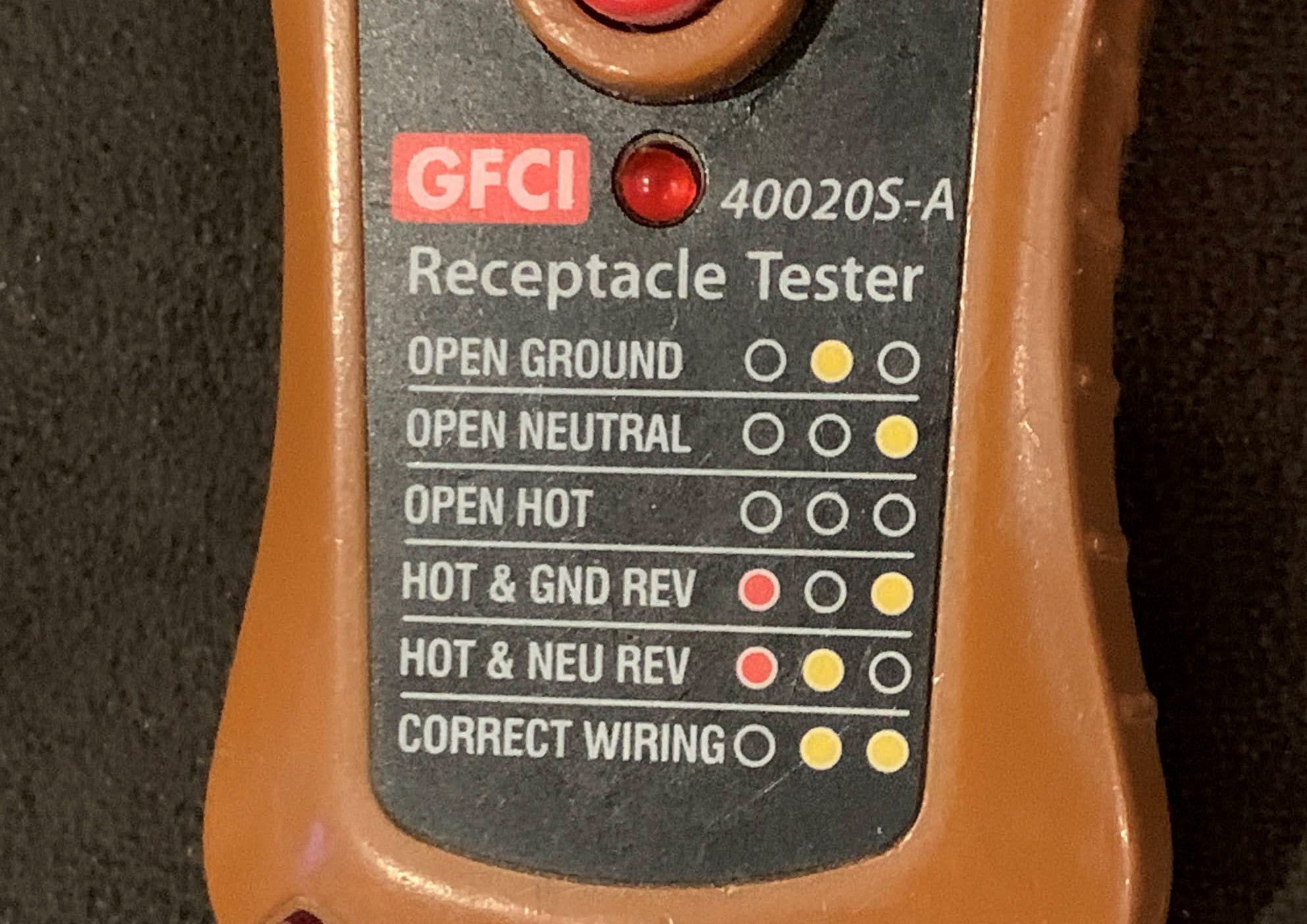

Here are the indications that each tester should give for different wiring configurations.
Results of the tests:

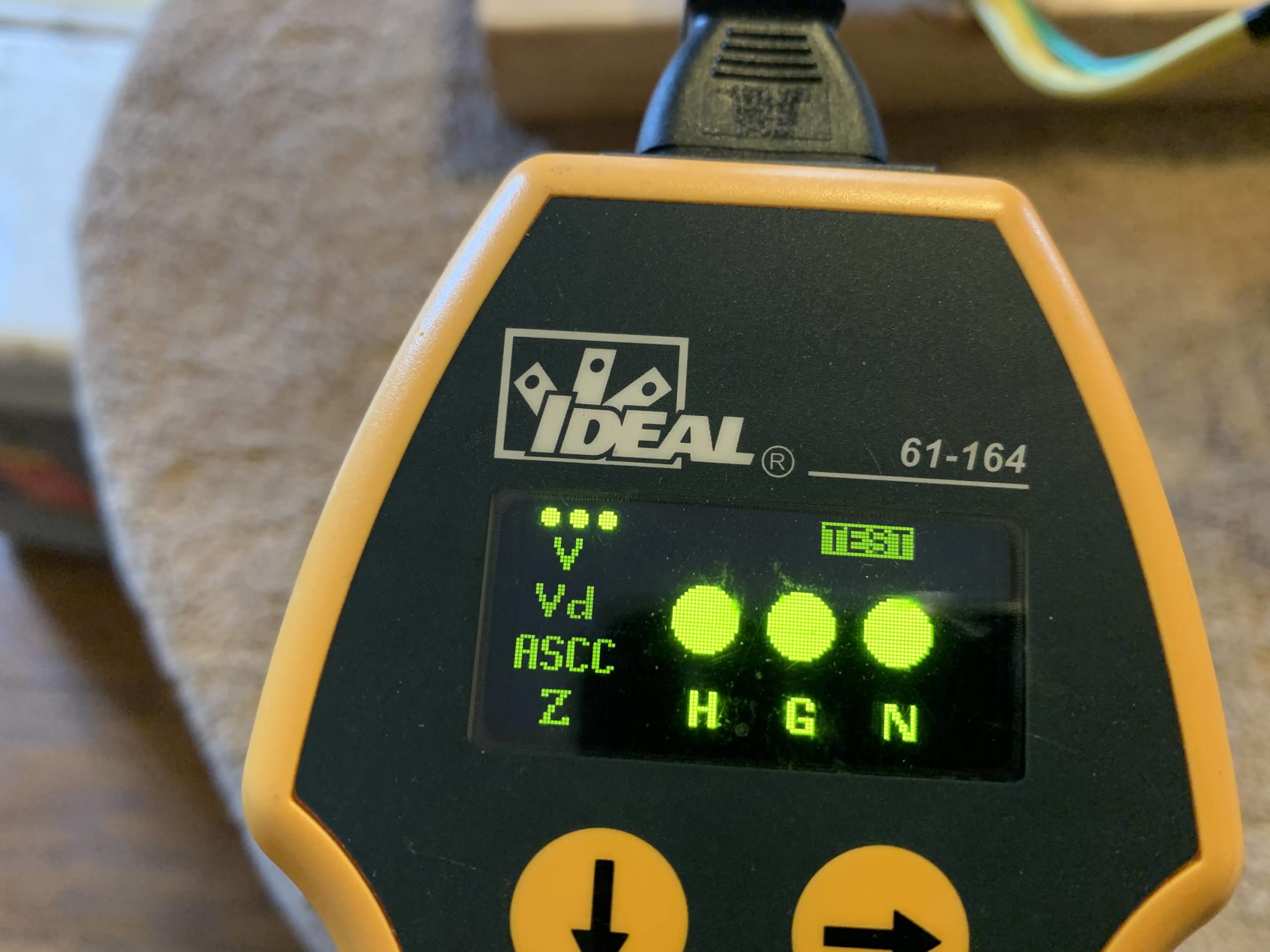

Properly Wired-
Correct Indication
Correct Indication
As you would expect, both testers gave the correct indications.
Open Ground-
Correct Indication
Correct Indication
Again, they both gave the proper indications.

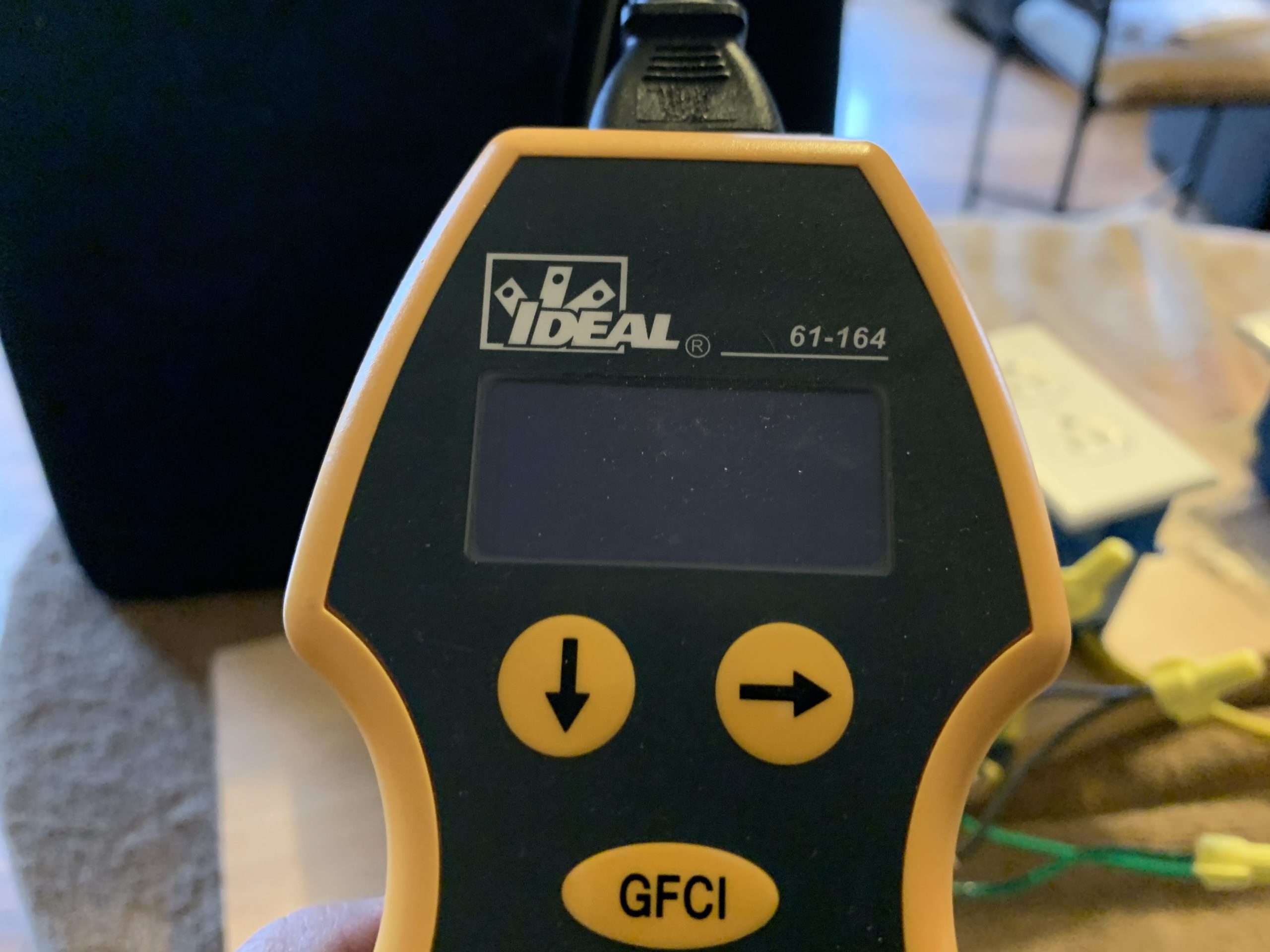

Open Hot-
Correct Indication
Correct Indication
An open hot is just a dead receptacle, so both testers should have, and did, show nothing on their displays.

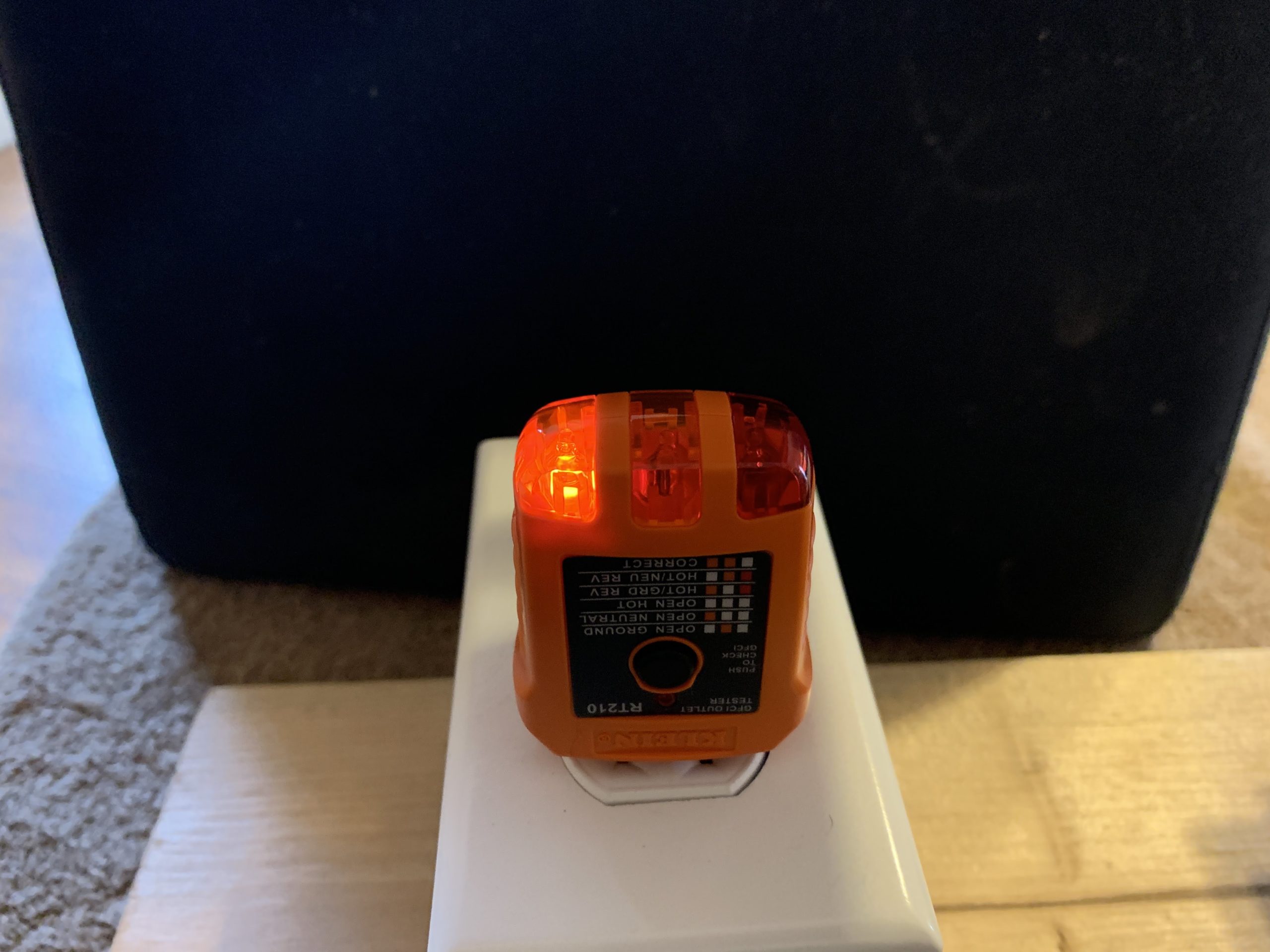

Open neutral with no load –
(On this set up, I disconnected a neutral wire upstream of the receptacle and had no load plugged downstream of the receptacle.)
Correct Indication
On this one, it takes two photos to show the indication that the Suretest gave. The Suretest screen was mostly blank, but about every two seconds the screen would briefly flash what you see in the second photo.
Wrong Indication
This is the first situation where the three light tester outdid the SureTest. Yes, the three light tester was accurate while the Suretest told you nothing useful.

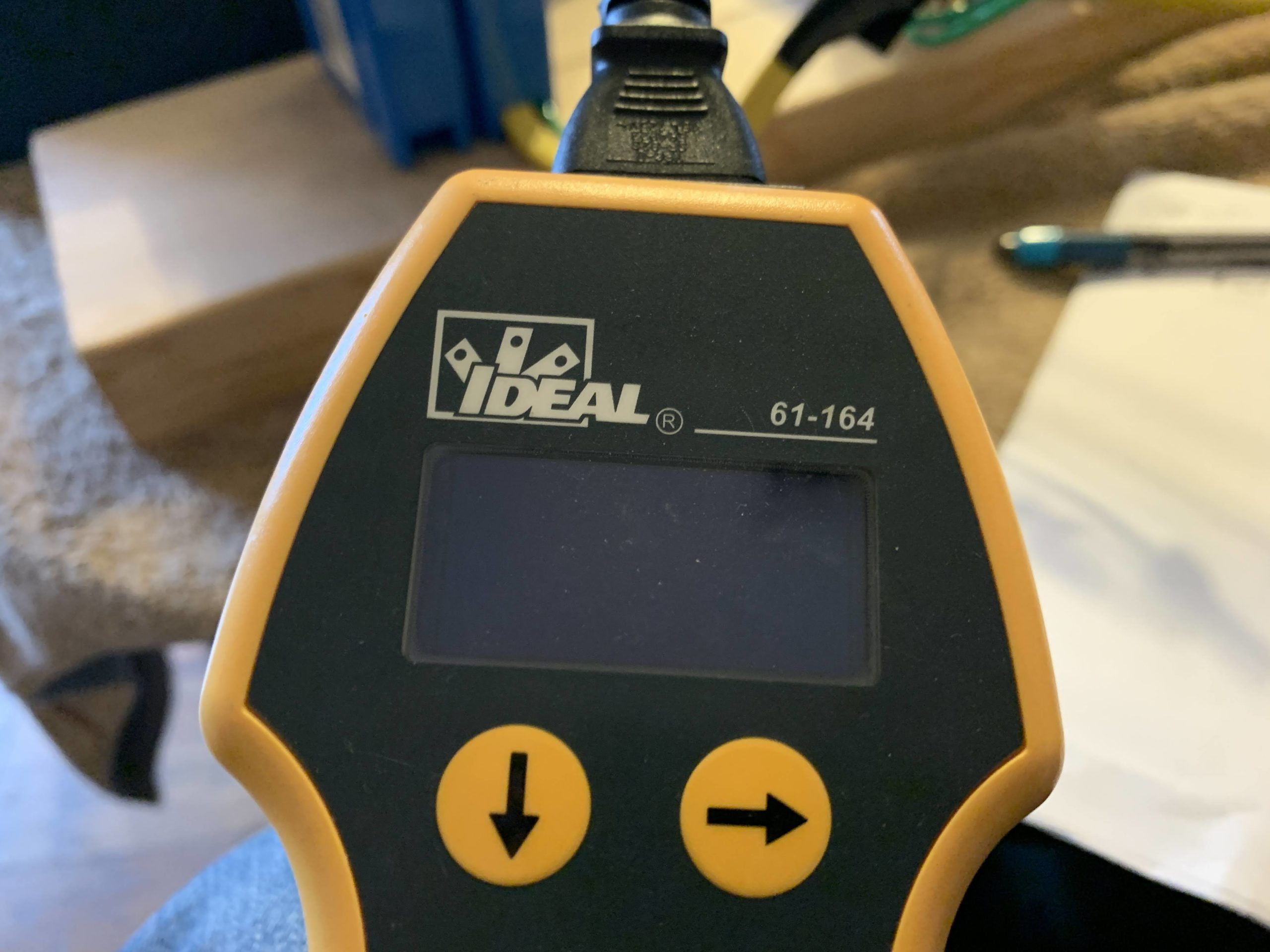

Open neutral with a load plugged in and turned on –
Wrong Indication
Wrong Indication
Here is another instance where the three-light tester is more accurate. Although it shows that we have a hot/ground reverse which is wrong, at least it shows something, while the Suretest is completely blank giving us no indication at all.
As long as you keep in mind that a “Hot/Ground Reverse” indication actually means an Open Neutral, then the three-light tester will tell you what the problem is.
I have another post that talks all about why an open neutral will give an indication of a hot/ground reverse. You can read post that here- hot/ground reverse post.

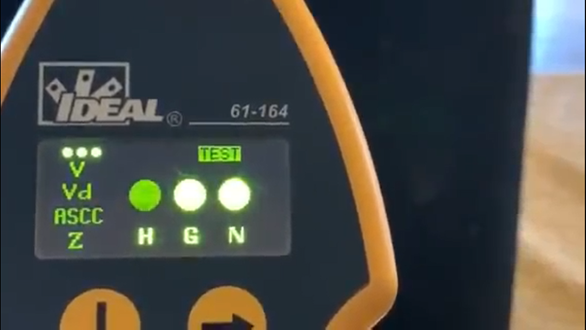

Hot/Neutral Reverse (Reverse Polarity) –
Correct Indication
Again, on this one, it takes two photos. The “H” and “N” lights are flashing on and off alternately, indicating the hot/neutral reverse.
Correct Indication
For this wiring configuration, both testers gave the accurate indication of the defect.

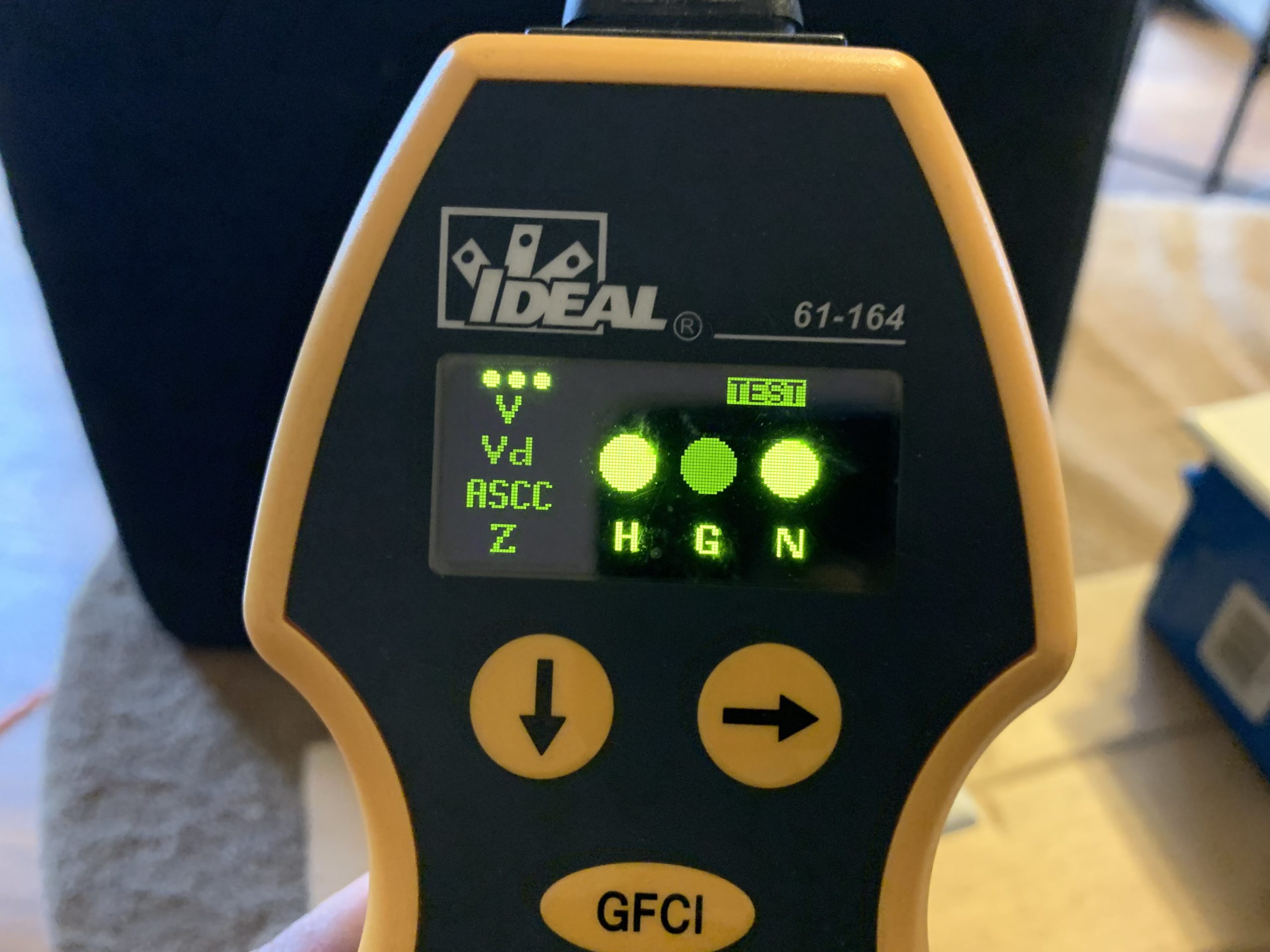

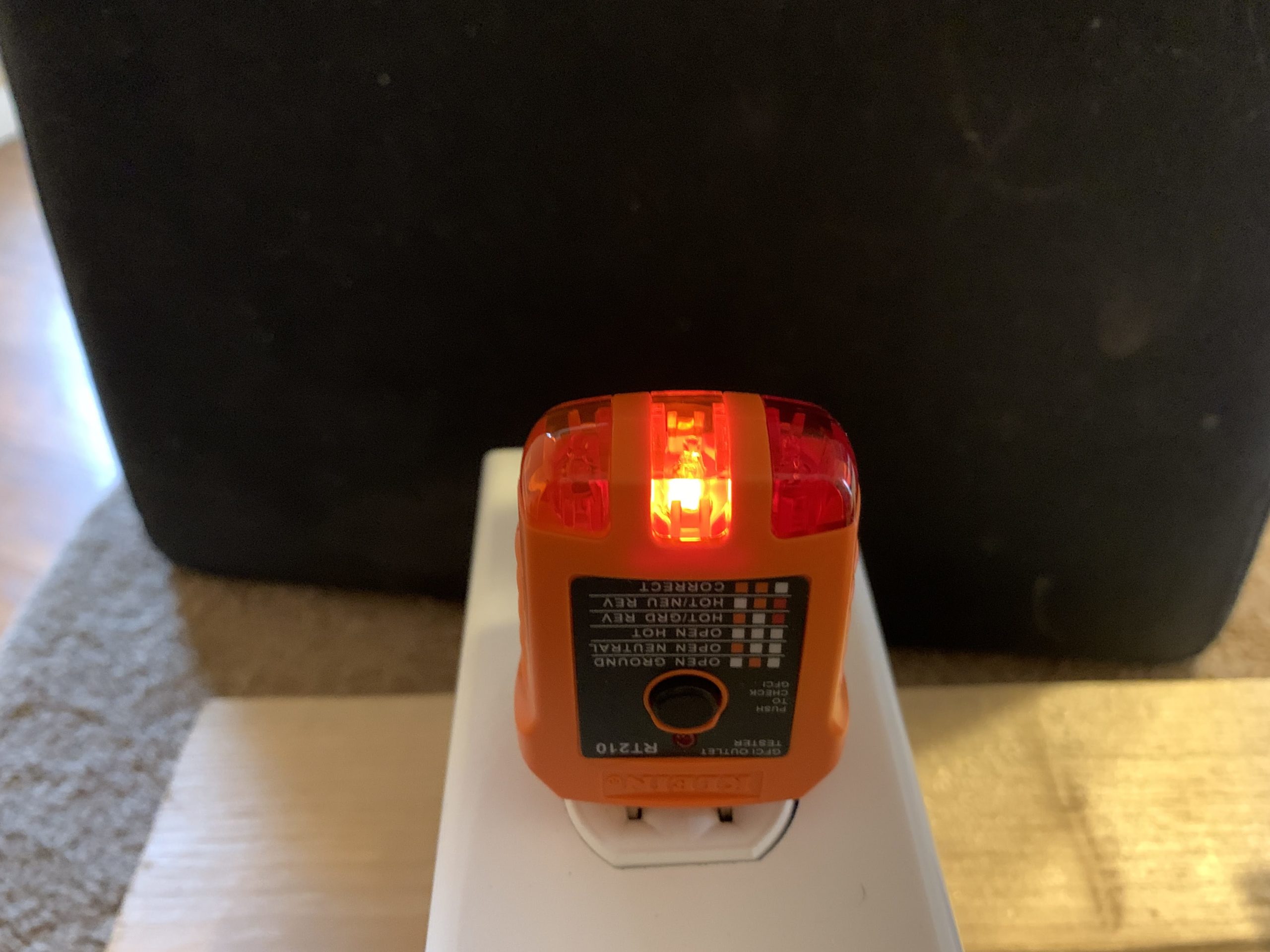

Open Ground and Reverse Polarity Combined –
Partially Correct
Partially Correct
The three-light tester and the circuit analyzer both only recognize and indicate that the receptacle has an open ground. Neither of them identifies that the receptacle is also wired with reverse polarity.
Bootleg Ground –
A bootleg or false ground is a dangerous situation which you will likely encounter at some point. If you are unsure what it is, you can read about bootleg grounds here.
Wrong Indication
Correct Indication
The three-light tester cannot identify a bootleg ground. As you can see, it simply indicates that the receptacle is properly wired. This is one of the weaknesses of the three-light tester.
The Suretest circuit analyzer properly identifies the bootleg ground and indicates this with the flashing “F” shown in the photo.
This table summarizes the indications that both the three-light tester and the SureTest circuit analyzer give for various wiring configurations.
Wiring Configuration |
Three-Light Tester |
SureTest Circuit Analyzer |
Correctly wired | Correct indication | Correct indication |
Open ground | Correct indication | Correct indication |
Open hot | Correct indication | Correct indication |
Open neutral, no load | Correct indication | Blank (with quick flash) |
Open neutral, with load | Indicates hot/ground reverse | Blank |
Reverse polarity | Correct indication | Correct indication |
Open ground & reverse polarity | Indicates open ground only | Indicates open ground only |
Bootleg ground | Indicates properly wired | Correct indication |
Hopefully, this post will help you to see the limitations of the two types of testers. All-in-all, the SureTest circuit analyzer and the three-light tester seem to be about equal based on my tests. While they both correctly identified five situations, they each have their own limitations.
The only configuration indicated correctly by the Suretest that was not identified by the three-light tester was a Bootleg ground. Is this one deficiency worth paying about $300 more to identify? You will have to make that decision for yourself.
